- Self-powered roller conveyor Integrated roller system automates load transfer at docking stations, eliminating manual lifting and shortening cycle time between conveyor lines and workstations.
- ±10 mm docking accuracy Precise station alignment with ±10 mm positional and ±1° angular accuracy ensures reliable roller-to-roller handoff without mechanical guides.
- Adjustable conveyor geometry Width (120–540 mm), working surface height (305–1,100 mm), and roller direction are configurable to match diverse station and rack designs.
- ISO 3691-4 compliant safety stack LiDAR sensors, depth cameras, collision protection sensing, and emergency stops meet industrial forklift-truck safety standards for shared human-robot environments.
- Real-time in-position monitoring Onboard sensors confirm correct load placement at each station and support IoT connectivity with PLC and production workflow systems.
- Up to 12-hour runtime, 2-hour charge Single-layer configuration delivers up to 12 h empty runtime and 10 h under full load, with a fast 0–90% charge in approximately 2 hours.
الوصف

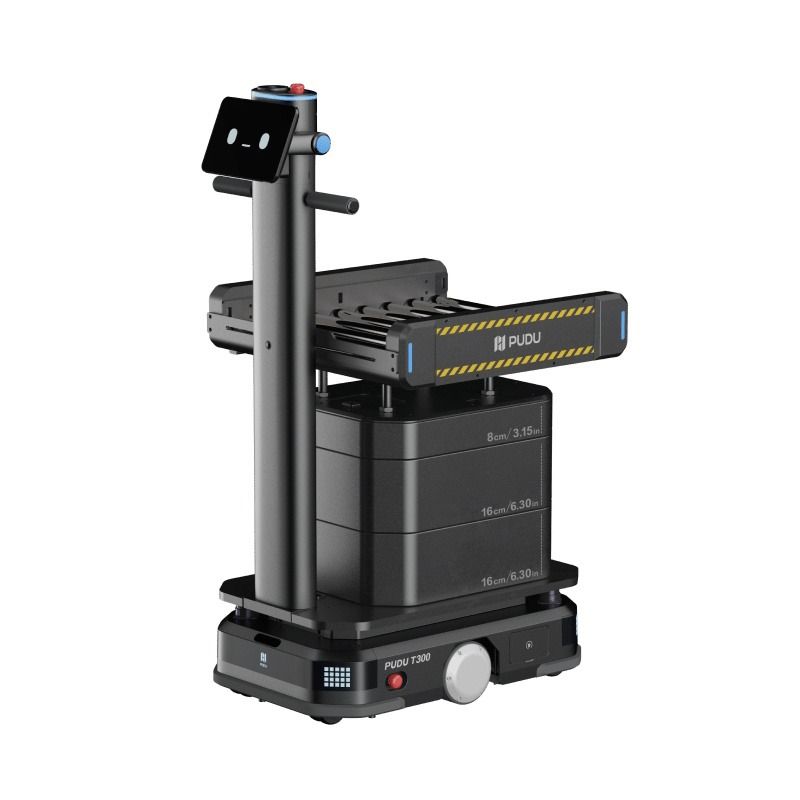

The PUDU T300 Conveyor-S is a semi-automated intralogistics AMR that bridges the gap between passive carrier robots and fully fixed conveyor infrastructure. Built on the industrial-grade PUDU T300 base platform, it features a self-powered roller conveyor system that enables the robot to dock to a station with ±10 mm precision, then automatically transfer goods on or off without manual lifting. This "mobile conveyor segment" approach supports line-to-line, line-to-human, and human-to-line transfer patterns commonly found in manufacturing and distribution environments, reducing handling time at each stop on a production circuit.
The conveyor module offers a single-layer configuration with a rated transfer load of 80 kg and adjustable geometry—conveyor width from 120 mm to 540 mm, working surface height from 305 mm to 1,100 mm—so it can be matched to existing station designs without extensive retrofitting. Real-time in-position monitoring and IoT connectivity allow the robot to confirm correct placement and communicate with PLC-controlled upstream systems. Underpinned by ISO 3691-4-compliant safety measures including LiDAR sensors, depth cameras, and emergency stop controls, the T300 Conveyor-S is designed for continuous multi-shift operation with up to 12 hours of runtime at no load and a 2-hour charge cycle.
الميزات
المواصفات
| Brand | PUDU Robotics |
|---|---|
| Model | T300 Conveyor-S |
| Conveyor Configuration | Single-layer (expandable to double-layer) |
| Transfer Load (Single Layer) | 80 kg |
| Transfer Load (Double Layer) | 160 kg |
| Docking Accuracy | ±10 mm / ±1° |
| Conveyor Width (Adjustable) | 120–540 mm |
| Working Surface Height (Adjustable) | 305–1,100 mm |
| Transfer Length (Depth) | Up to 650 mm |
| Maximum Speed | 1.2 m/s |
| Runtime (Empty / Full Load) | 12 h / 10 h (single-layer) |
| Charging Time | ~2 h (0–90%) |
| Robot Weight (Single Layer) | 120 kg |
| Minimum Path Clearance | 60 cm |
الصناعات
الأسئلة الشائعة
The T300 Conveyor-S is a semi-automated intralogistics AMR equipped with a self-powered roller conveyor. It is used to automatically transfer goods between fixed conveyor lines, workstations, and production cells in factories and warehouses, supporting line-to-line, line-to-human, and human-to-line transfer patterns.
Unlike passive carrier AMRs that require manual loading and unloading, the T300 Conveyor-S uses a motorized roller system to autonomously move goods on and off the robot at docking stations, achieving ±10 mm positional accuracy for consistent roller-to-roller handoff.
It is particularly relevant to manufacturing, warehouse logistics, and distribution operations where moving goods between conveyor segments, kitting areas, or assembly line stations is a high-frequency, repetitive task.
Yes, Robotix Market ships the PUDU T300 Conveyor-S worldwide. The product is covered by the manufacturer's warranty as provided by PUDU Robotics.
Contact Robotix Market through the website's quote or inquiry form. Our team will provide pricing, lead time, configuration options, and shipping details for your project.
