- 6-DoF myCobot 280 arm enables mobile grasping and pick-and-place workflows
- NVIDIA Orin Nano compute module supports onboard AI and vision models alongside ROS
- ROS1 Noetic and ROS2 Foxy compatible; programmable in Python and C++ with Gazebo/RViz simulation support
- Integrated 3D depth camera, LiDAR, and IMU for full autonomy demos
- 10 Ah / 12 V battery with approximately 150 minutes operating time
- Compact form factor (322 × 200 × 550 mm) suited to lab and classroom environments
Descripción

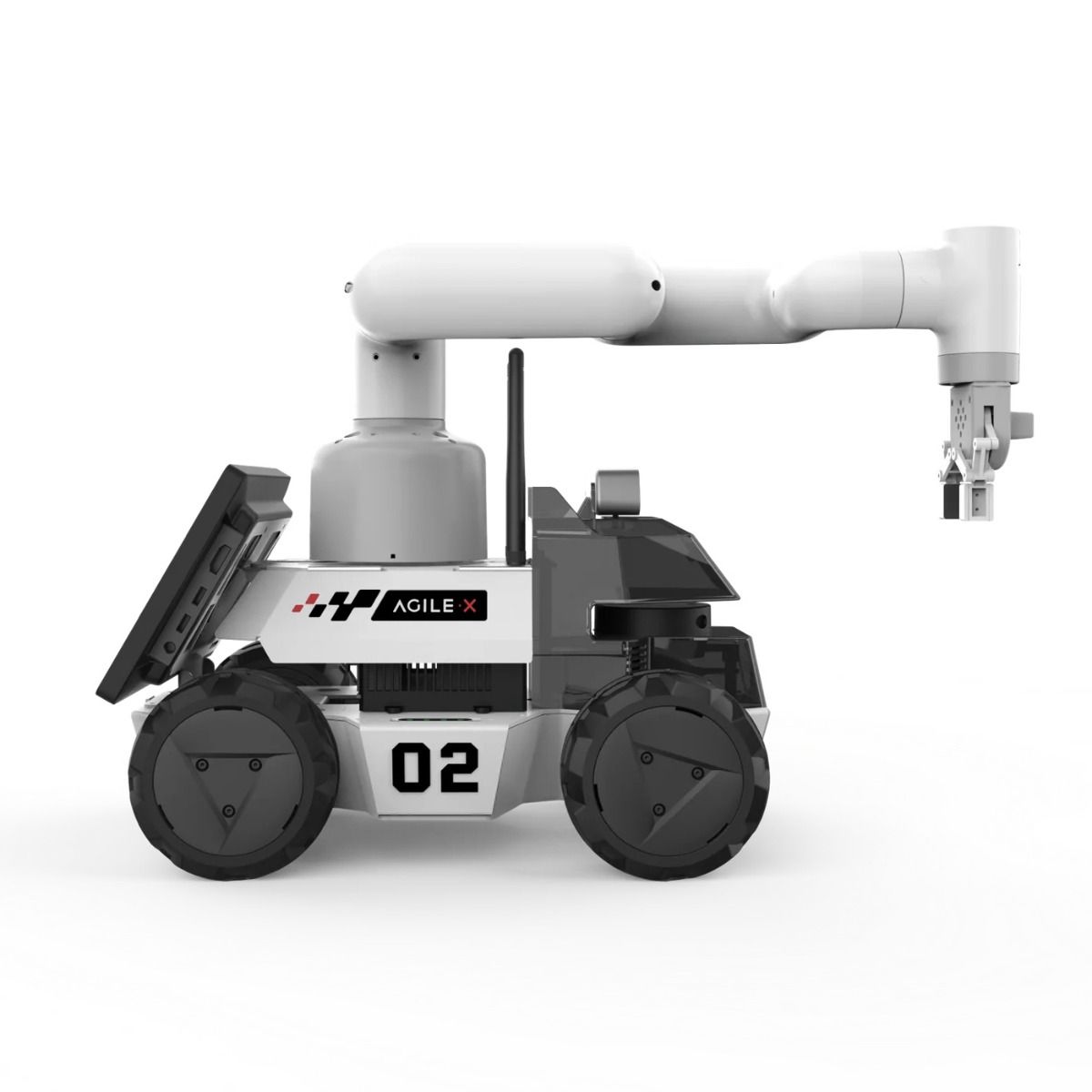

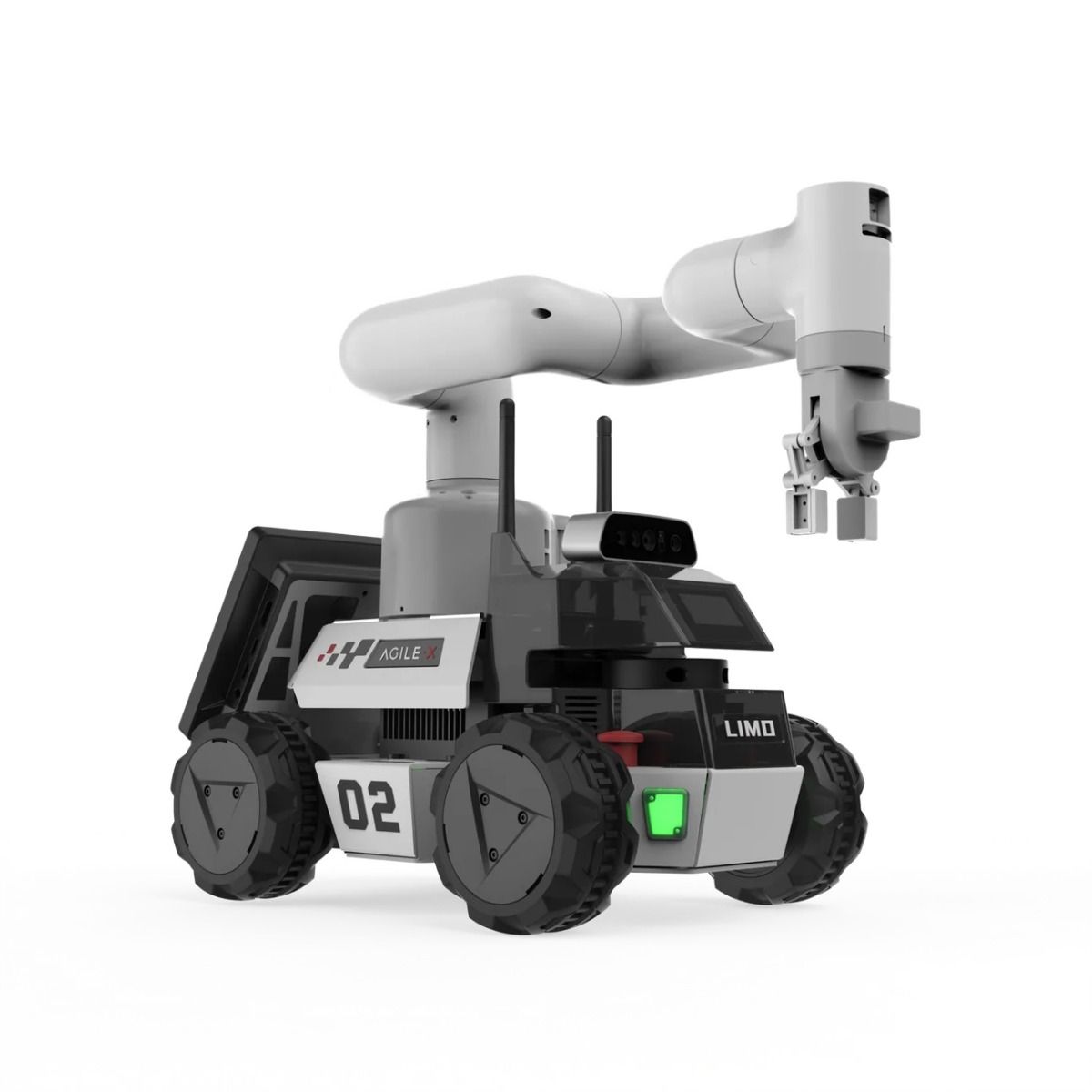

The AgileX LIMO COBOT is a compact mobile manipulator that combines the LIMO PRO four-wheel mobile base with a myCobot 280 6-axis robotic arm and an NVIDIA Orin Nano onboard computer. Designed for education, training, competitions, and rapid prototyping, it delivers an out-of-the-box platform for learning autonomous navigation alongside real manipulation tasks.
The system ships with a depth camera (Orbbec DaBai), a LiDAR for mapping and obstacle avoidance, and an IMU — giving students and researchers a complete perception stack for SLAM, localization, and MoveIt motion planning experiments without additional hardware.
Características
Especificaciones
| Brand | AgileX |
|---|---|
| Model | LIMO COBOT |
| Mobile Base | LIMO PRO (four-wheel, differential steering) |
| Robotic Arm | myCobot 280, 6-DoF (Elephant Robotics) |
| Arm Working Radius | ~280 mm |
| Arm Payload | ~0.25 kg |
| Mobile Base Payload | 4 kg |
| Top Speed | ~1 m/s |
| Battery | 10 Ah / 12 V lithium |
| Operating Time | ~150 minutes |
| Onboard Computer | NVIDIA Orin Nano |
| Sensors | Orbbec DaBai 3D depth camera, LiDAR, IMU |
| Display | 7-inch screen |
| Dimensions (W × D × H) | 322 × 200 × 550 mm |
| Total Weight | ~5.6 kg (mobile base + arm) |
| Software | ROS1 Noetic, ROS2 Foxy; Python, C++; Gazebo/RViz simulation |
Sectores
Preguntas frecuentes
The AgileX LIMO COBOT is a mobile manipulator that combines the LIMO PRO wheeled base with a myCobot 280 6-axis robotic arm and an NVIDIA Orin Nano computer. It is used for robotics education, competition prototyping, training programs, and mobile manipulation research — giving users a complete platform for both autonomous navigation and arm-based grasping tasks out of the box.
The LIMO COBOT supports SLAM-based mapping, autonomous navigation, and obstacle avoidance via its built-in LiDAR, Orbbec DaBai depth camera, and IMU. Its integrated 6-DoF myCobot 280 arm enables pick-and-place and mobile grasping tasks. The onboard NVIDIA Orin Nano runs ROS1 Noetic and ROS2 Foxy alongside AI vision models, and the system is programmable in Python and C++ with Gazebo and RViz simulation compatibility.
The LIMO COBOT is designed primarily for education and research. Typical applications include university robotics courses covering navigation, localization, and motion planning; robotics competitions requiring a compact multi-capability platform; and prototyping or research projects exploring mobile manipulation, human-robot interaction, and AI-driven perception pipelines.
Yes, the AgileX LIMO COBOT ships worldwide. The product is covered by the manufacturer's warranty as provided by AgileX. Robotix Market does not offer installation or on-site service — warranty terms are those set by the manufacturer.
You can add the LIMO COBOT to your cart directly on this page, or contact Robotix Market for a quote if you need bulk pricing, institutional purchasing, or shipping details for your region. Our team will respond promptly to assist with your order.
