- Desktop-class 355 mm reach A 355 mm working radius and 505 mm overall height keep the arm within a compact benchtop envelope for close-range workstation tasks.
- Ultra-light 3.3 kg body At just 3.3 kg the ECO62-B mounts easily on benchtops, small fixtures, and mobile carts where every kilogram of mounting mass counts.
- 1 kg rated / 2 kg peak payload Suited to light manipulation and demonstration-scale automation such as moving small parts between trays, fixtures, and inspection positions.
- ±0.05 mm repeatability High-precision, repeatable positioning for consistent small-part handling and sorting.
- Integrated controller The controller is built into the system rather than housed in a separate cabinet, reducing installation complexity and cable routing.
- Flexible teaching and control Drag-and-drop teaching, a teaching pendant, and API/JSON control over Wi-Fi, Ethernet, Bluetooth, USB serial, and RS485.
Description

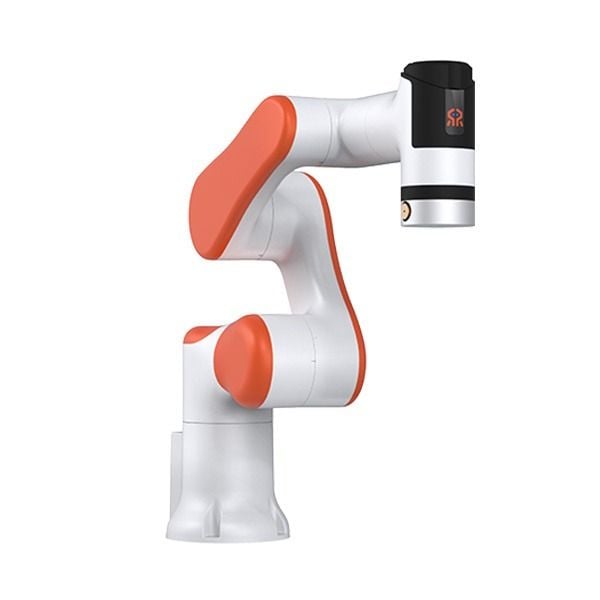

The Realman ECO62-B is a compact, desktop-class 6-DOF ultra-lightweight collaborative arm built for close-range manipulation in tight workspaces. With a 355 mm working radius, a 505 mm overall height, and a body weight of just 3.3 kg, it is sized for benchtops, kiosks, small fixtures, and mobile carts where footprint and mounting mass are the primary constraints. It handles a 1 kg rated payload (up to 2 kg maximum) and delivers ±0.05 mm repeatability for precise, consistent small-part positioning.
An integrated controller keeps the ECO62-B free of a separate control cabinet, simplifying installation and cabling, while its aluminum-alloy and ABS construction carries an IP54 rating on the arm body for typical indoor conditions. Running on a DC 24 V supply, it supports drag-and-drop teaching, teach-pendant operation, and API/JSON programming over Wi-Fi, Ethernet, Bluetooth, USB serial, and RS485 — a practical fit for laboratory automation, benchtop pick-and-place and sorting, education and robotics R&D, and scripted commercial-service demonstrations. Contact us for current pricing, availability, and a tailored quote.
Features
Specs
| Brand | Realman Robotics |
|---|---|
| Model | ECO62-B |
| Degrees of Freedom | 6 |
| Working Radius (Reach) | 355 mm |
| Overall Height | 505 mm |
| Rated Payload | 1 kg (2 kg maximum) |
| Body Weight | 3.3 kg |
| Repeatability | ±0.05 mm |
| Power Supply | DC 20–30 V (nominal 24 V) |
| Power Consumption | Max 200 W; typical 100 W |
| Protection Rating | IP54 (arm body) |
| Materials | Aluminum alloy + ABS |
| Controller | Integrated |
| Communication | Wi-Fi / Ethernet / Bluetooth / USB serial / RS485 |
| Control Modes | Drag-and-drop teaching / teaching pendant / API / JSON |
Industries
Frequently Asked Questions
The ECO62-B has a 355 mm working radius and handles a 1 kg rated payload, up to a 2 kg maximum. It is a compact desktop-class arm rather than a mid-size manipulator.
The arm body weighs just 3.3 kg and includes an integrated controller, so there is no separate control cabinet to mount or wire.
It suits benchtop pick-and-place and sorting, laboratory sample and tool handling, education and robotics R&D, and scripted commercial-service demonstrations where a small footprint and low DC power draw matter.
It supports drag-and-drop teaching, teach-pendant operation, and API/JSON programming, with connectivity over Wi-Fi, Ethernet, Bluetooth, USB serial, and RS485.
Yes. Robotix Market supplies businesses worldwide with invoicing and after-sales support, and the manufacturer's warranty applies. Contact us for current pricing, availability, and a tailored quote.
Realman Robotics ECO62-B 6-DOF Ultra-Lightweight Humanoid Robotic Arm
