- 1000 kg rated load Moves loads up to 1000 kg autonomously, automating material transfers that would otherwise require manual handling equipment.
- Under-ride lift design Drives beneath loads for precise access at pick-up points and raises them with a smooth, stable 60 mm lifting action.
- SLAM + QR code navigation Supports SLAM combined with QR code guidance or QR-code-only navigation to match the facility's infrastructure.
- ±10 mm / ±1° positioning accuracy High-precision positioning keeps pick-up and drop-off placement consistent for repeatable production logistics.
- 6-8 hour rated operating time Sustains long working sessions across production shifts before recharging is needed.
- Low-profile 280 mm chassis Compact 1176 x 898 x 280 mm body slips under loads and moves easily through tight intralogistics routes.
Description

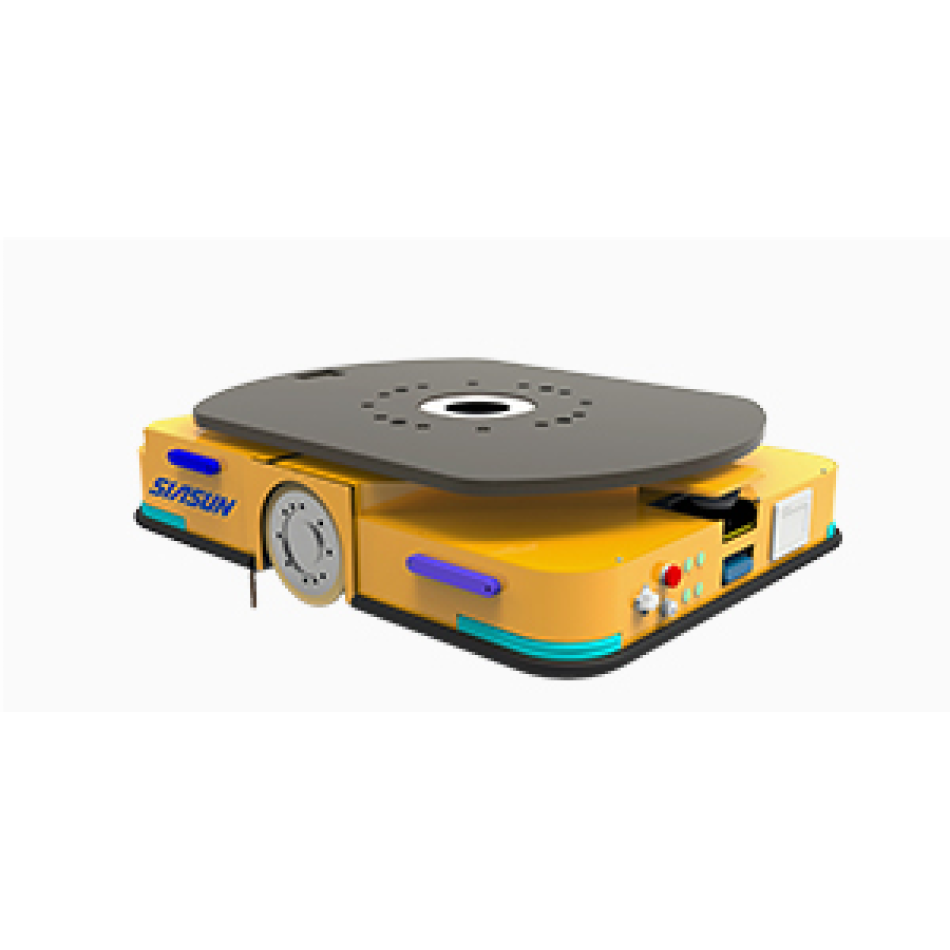

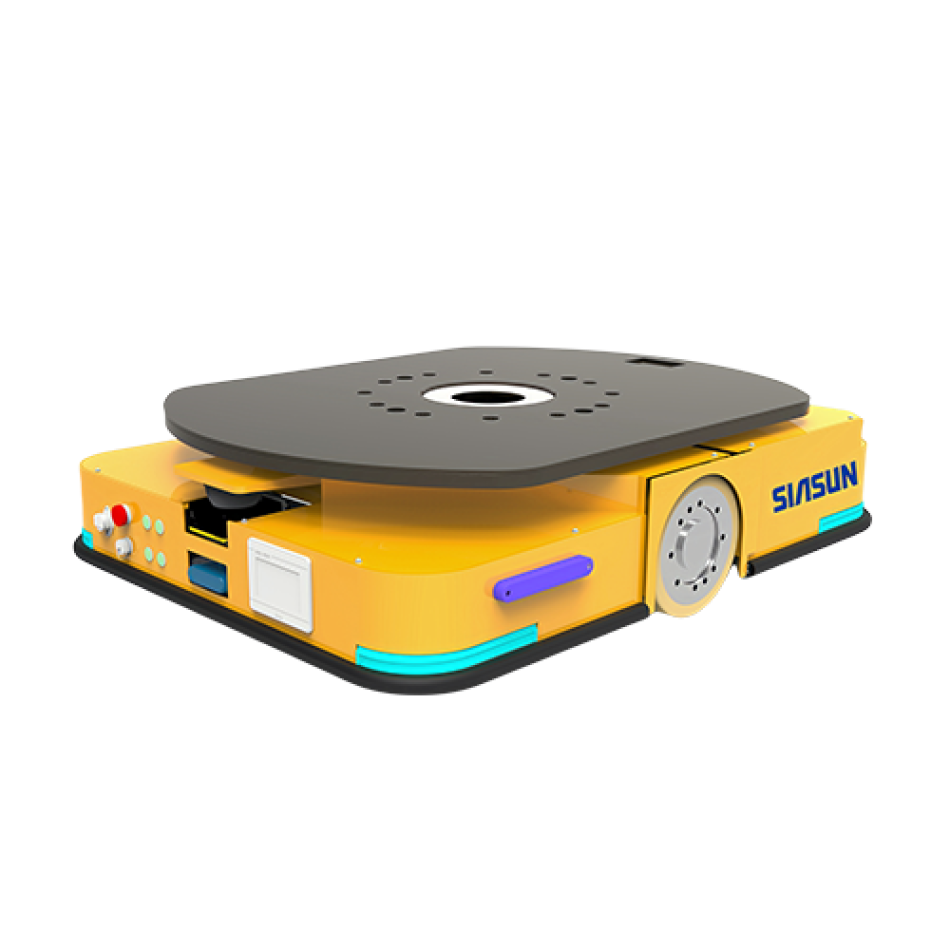

The SIASUN P-T1000D is an autonomous under-ride lift mobile robot rated for a 1000 kg load. Its under-ride design lets the robot drive precisely beneath loads at pick-up points, then raise them with a smooth, stable 60 mm lifting action for transport. Navigation combines SLAM with QR code guidance (or QR code alone), achieving positioning accuracy of ±10 mm and ±1° — precision that keeps repeatable material transfers consistent shift after shift. The P-T1000D belongs to SIASUN's under-ride lift family, which spans payload options from 600 to 3,000 kg, so operations can standardize on one platform across different load classes.
Widely deployed in industrial production logistics, the P-T1000D suits smart factories, warehouses, and process-driven material handling where repeatable transport, accurate positioning, and safe autonomous operation are required. A rated operating time of 6 to 8 hours covers extended production windows, and the low-profile chassis measures 1176 x 898 x 280 mm for access beneath loads. The robot is configured for quotation-based purchasing, with availability, final configuration, and integration requirements confirmed before ordering through Robotix Market.
Features
Specs
| Brand | SIASUN |
|---|---|
| Model | P-T1000D |
| Rated Load | 1000 kg |
| Navigation Method | SLAM + QR Code / QR Code |
| Positioning Accuracy | ±10 mm / ±1° |
| Lifting Height | 60 mm |
| Rated Operating Time | 6-8 hours |
| Overall Dimensions | 1176 x 898 x 280 mm |
| Series Payload Options | 600-3,000 kg (under-ride lift family) |
Industries
Frequently Asked Questions
The P-T1000D is an autonomous under-ride lift mobile robot from SIASUN rated for 1000 kg. It drives beneath loads at pick-up points, lifts them 60 mm, and transports them autonomously across factories and warehouses.
It navigates using SLAM combined with QR code guidance, or QR code alone, and positions itself with an accuracy of ±10 mm and ±1° — precise enough for repeatable, process-driven material handling.
It is widely deployed in industrial production logistics: smart factories, warehouses, and material handling workflows that need repeatable transport, accurate positioning, and safe autonomous operation, with a 6-8 hour rated operating time per session.
The V-Series is SIASUN's stationary industrial robot line for manufacturing tasks, while the P-T1000D is a mobile robot that transports materials around a facility. If you need heavier transport capacity, the same under-ride lift family offers payload options from 600 up to 3,000 kg, including the P-T1500D.
The P-T1000D is sold on a quotation basis — availability, final configuration, and integration requirements are confirmed before ordering. Request a quote through Robotix Market and our team will provide pricing and shipping details. The robot is covered by the manufacturer's warranty as provided by SIASUN.
