- Purpose-built for arc welding A wire feeder integrated compactly into the robot body and a scientifically designed conduit layout improve wire feeding stability and overall welding quality.
- Hollow arched arm with internal cabling The hollow bow-shaped arm routes cables internally, extending cable service life and enabling flexible posture changes in confined spaces.
- 25% lighter aluminum construction A special casting process using automotive engine-grade aluminum alloy reduces weight by 25% compared with the previous generation.
- 12 kg payload with 1465 mm reach Six-axis arm combining a 12 kg payload, 1465 mm reach, and ±0.03 mm repeatability for precise work over a wide envelope.
- Floor or ceiling mounting Can be deployed floor-mounted or ceiling-hung, suiting operations with small turning radii and narrow work areas.
- Faster cycle times than the previous generation A high-rigidity structure and streamlined transmission deliver faster overall cycle times, with repeatability improved by 40% and operational efficiency boosted by 67%.
Description

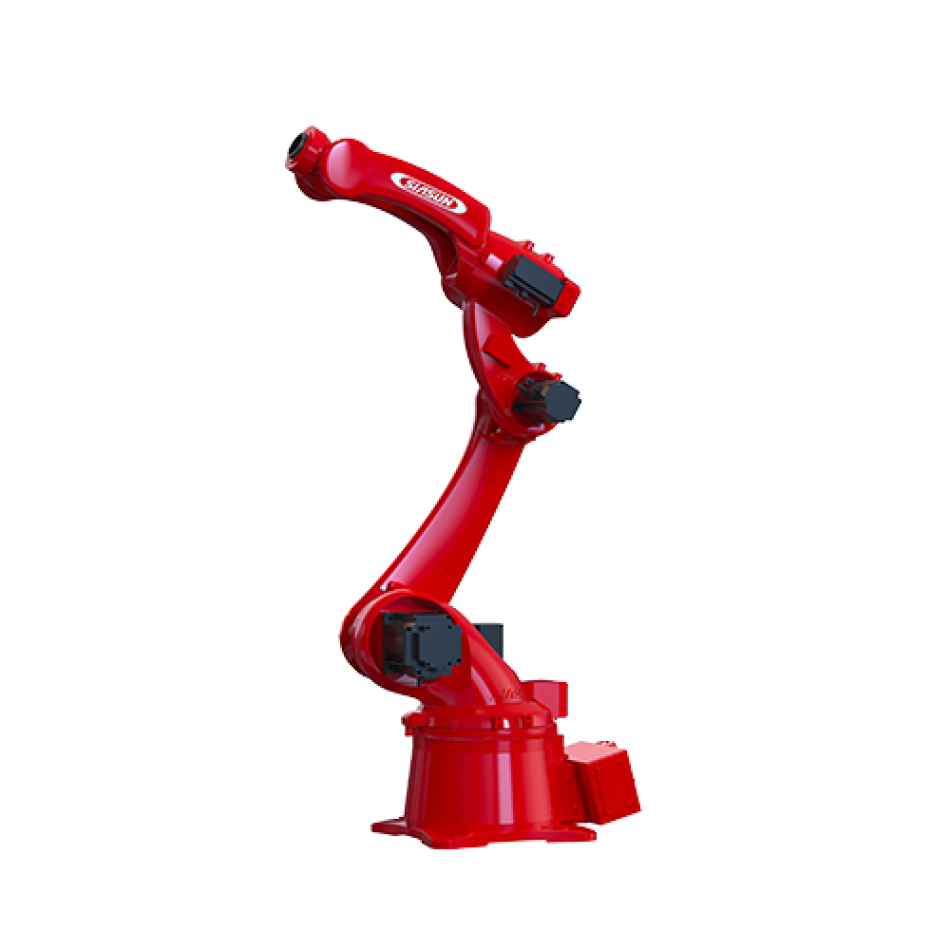

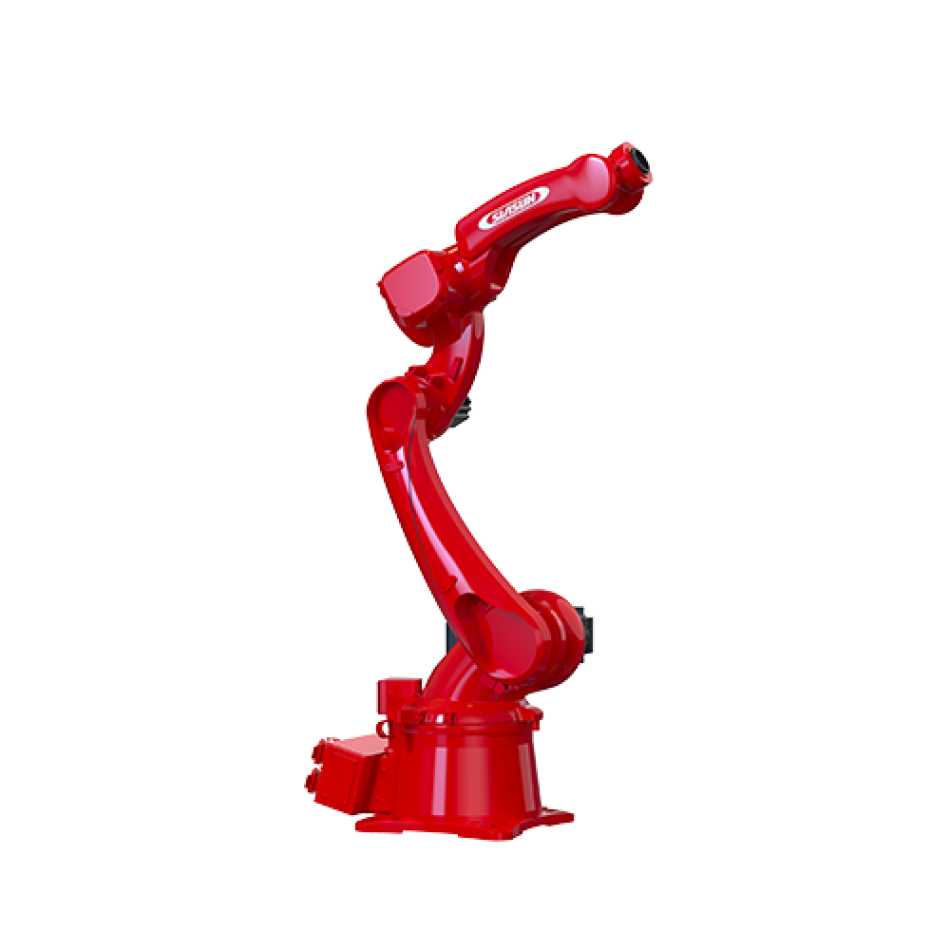

The SIASUN SR12A-12/1.46 is a six-axis industrial robot developed specifically for demanding arc welding applications, carrying a 12 kg payload across a 1465 mm reach with ±0.03 mm repeatability and an IP65-rated wrist. High-strength materials and an optimized mechanical structure minimize vibration for long-term stable operation, while a special casting process using automotive engine-grade aluminum alloy cuts the robot's weight by 25% compared with the previous generation. The hollow bow-shaped arm routes cables internally — extending cable service life and allowing more flexible posture changes in confined spaces — and the wire feeder is compactly integrated into the robot body, which together with the scientifically designed conduit layout improves wire feeding stability and weld quality. The high-rigidity structure and streamlined transmission deliver faster overall cycle times, with repeat positioning accuracy improved by 40% and operational efficiency boosted by 67% over the previous generation.
Beyond welding, SIASUN rates the SR12A-12/1.46 for handling, assembly, adhesive application, loading and unloading, and torqueing and fastening. It can be floor-mounted or ceiling-hung, making it well suited to operations with small turning radii and narrow work areas. The platform sits within SIASUN's proven industrial portfolio, with documented deployments spanning automotive welding assembly lines, LCD TV manufacturing solutions, teach-free welding, automated carton palletizing, and flexible welding workstations.
Features
Specs
| Brand | SIASUN |
|---|---|
| Model | SR12A-12/1.46 |
| Payload | 12 kg |
| Reach | 1465 mm |
| Degrees of Freedom | 6 |
| Repeatability | ±0.03 mm |
| Protection (Wrist) | IP65 |
| Mounting | Floor-mounted or ceiling-hung |
| Wire Feeder | Integrated into robot body |
| Arm Design | Hollow bow-shaped arm with internal cabling |
| Construction | Automotive engine-grade aluminum alloy casting, 25% lighter than previous generation |
Industries
Frequently Asked Questions
It is a six-axis industrial robot developed specifically for demanding arc welding applications, offering a 12 kg payload, 1465 mm reach, ±0.03 mm repeatability, an IP65-rated wrist, and a body-integrated wire feeder for stable wire feeding.
Welding is its primary focus, but SIASUN also rates it for handling, assembly, adhesive application, loading and unloading, and torqueing and fastening, so it can cover adjacent tasks within the same cell.
The V-Series is a separate SIASUN industrial robot family, while the SR12A-12/1.46 is a dedicated arc welding model with an integrated wire feeder, hollow internally cabled arm, and 1465 mm reach. If your application is welding-led, this model is the specialized option; our team can advise on the best SIASUN fit for your line.
The robot is covered by the manufacturer's warranty as provided by SIASUN. Robotix Market ships worldwide, and warranty terms for your region are confirmed with your quotation.
Pricing is provided on a quotation basis. Submit a quote request or inquiry through Robotix Market and our team will respond with current pricing, availability, and shipping details for your location.
