- 6-axis articulated arm Six rotational axes provide flexible tool orientation and approach angles for welding, handling, and assembly.
- 35 kg-class payload An upgraded iteration of the 20 kg-class arm with an expanded scope of application fields.
- ~1,803 mm reach Services wider fixtures and multiple stations within a single working envelope.
- Hollow wrist, internal routing Hollow J4-J6 design with internal cable routing reduces interference and boosts stiffness.
- Integrated wire feeder Built-in wire feeder improves wire-feeding stability for welding tasks.
- Upgraded power system Delivers high precision, speed, and stability during intense production cycles.
Description

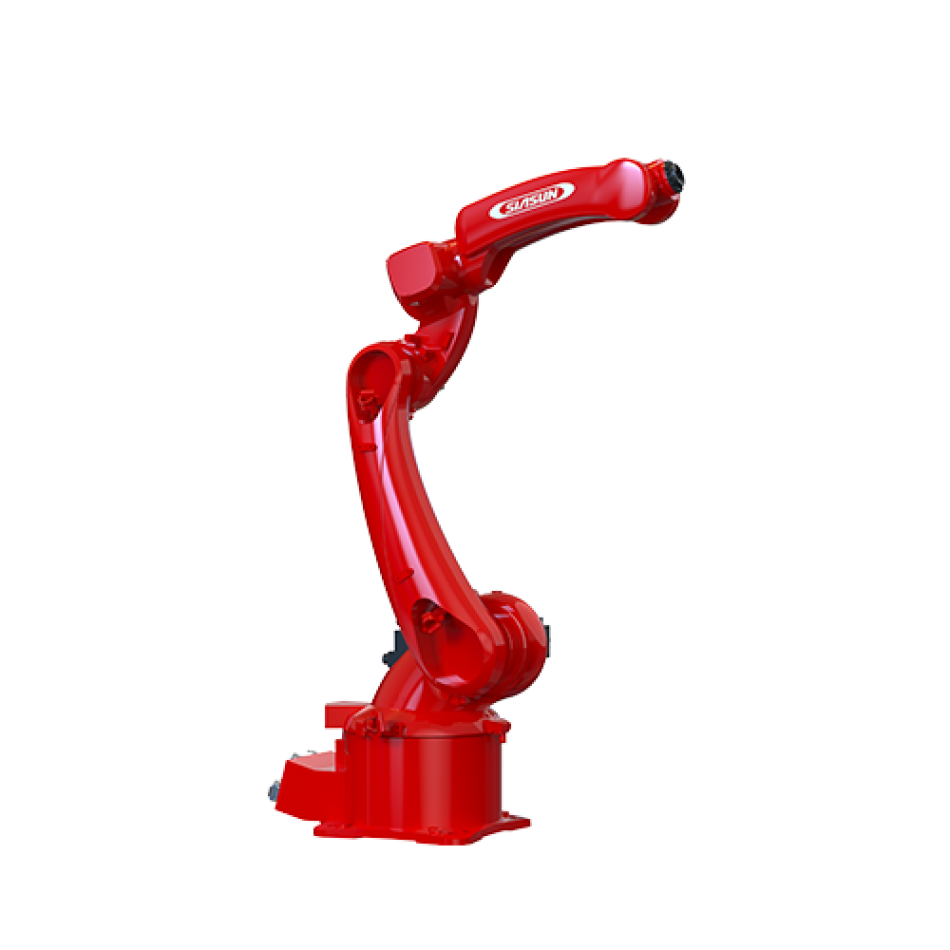

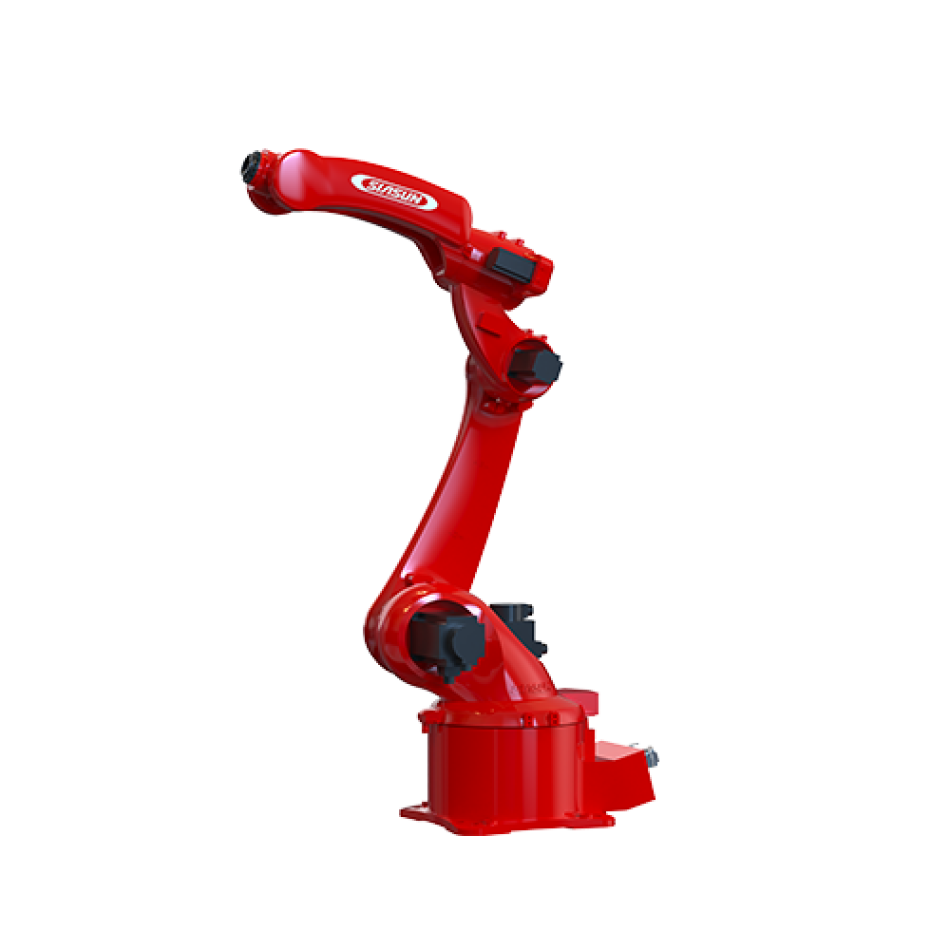

The SIASUN SR25A-35/1.80 is a 6-axis articulated industrial robot in the 35 kg-class with an approximately 1,803 mm reach, positioned by SIASUN as an upgraded iteration of its 20 kg-class arm with an expanded range of applications. Its J4-J6 wrist axes follow a hollow design with internal cable routing, which reduces interference, improves structural stiffness, and simplifies layout in crowded production cells. An integrated wire feeder and carefully engineered cable management improve wire-feeding stability, making it well suited to arc welding and fabrication alongside general handling and assembly. The reach-to-payload balance and upgraded power system support high precision, speed, and stability through demanding production cycles. Contact us for pricing, availability, and a tailored quote, backed by the manufacturer's warranty.
Features
Specs
| Brand | SIASUN |
|---|---|
| Model | SR25A-35/1.80 |
| Type | Articulated industrial robot arm |
| Axes / DOF | 6 |
| Payload Class | 35 kg |
| Maximum Reach | ~1,803 mm |
| Wrist Design | Hollow J4-J6 with internal cable routing |
| Integrated Feeder | Built-in wire feeder for welding |
| Warranty | 12 months (manufacturer) |
Industries
Frequently Asked Questions
Contact us for current pricing, availability, and a tailored quote on the SIASUN SR25A-12/2.01.
It is a 6-axis articulated industrial robot with a 12 kg payload and 2,010 mm reach, suited to arc welding and fabrication cells, CNC machine tending, conveyor pick-and-place, and assembly and general handling in automotive and electronics production.
The SR25A-12/2.01 offers 6 axes, a 12 kg maximum payload, a 2,010 mm reach, 0.07 mm repeatability and an IP65 protection rating, and supports both floor- and ceiling-mounted installation.
Yes. Robotix Market ships worldwide with full logistics support, customs handling, and after-sales assistance.
Yes. Robotix Market supplies businesses worldwide with invoicing and after-sales support. Contact us for a quote.
